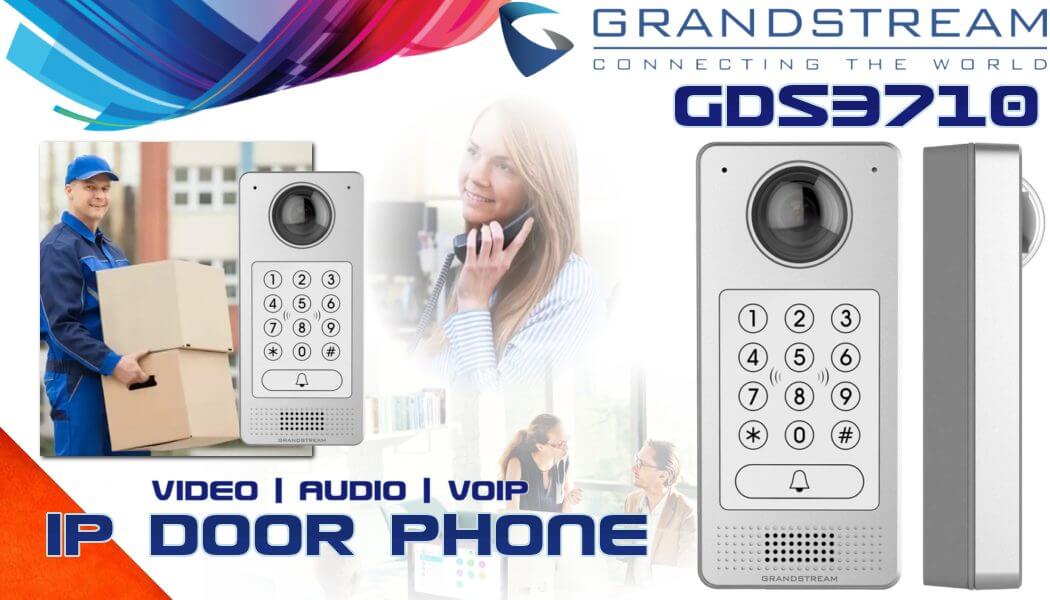

Grandstream GDS3710 IP Video Phone in detail
The Grandstream GDS3710 in Tanzania is designed for providing reasonable protection and control against harmful interference or regulate the access for Residential Units and Business Units. The GDS3710 is HD Video IP Door Phone System enable access control and tracking to any physical building or office. The GDS3710 also can record, track and manage your premise entrance along with IP Video intercom Function. This Device is suitable for all weather applications as it is featured with IP66 Weatherproof and vandal resistant. It can work outdoors under a wide temperature range starting from -30°C to 60°C. The SIP Protocol support allows this IP Video Door phone to integrate with any IP PBX Phone System.
The GDS3710 can cat as an IP CCTV camera and record the feeds in an NVR. The SIP Support ensures powerful integration with many IP Telephone System brands in the markets and Grandstream telephony solutions itself. This Video door phone offers a complete access solution with Attendance System, security monitoring and video intercom. The GDS3710 IP Video Door System Camera offers a 180-degree video viewing angle which enables you to see the outside party even in narrow corridors. It has a built-in RFID Card reader for secure keyless entry, Keypad for password entry and remote door open function from your SIP Mobile application or IP Telephone. The built-in speaker and microphone support audio intercom functionality and the 2 MP, 1920H x 1080V camera give you high-quality video. The Camera offer day and night function with a minimum illumination of 0.5Lux. It offers exceptional performance in all lighting conditions. The camera also features Wide Dynamic Range ensures the outside light does not interfere with the quality of the video. The GDS3710 is ONVIF Profile S compliant and able integrate with any ONVIF compliant third party NVR recording solution. It also can feed multiple video streams for different applications. The Speaker in this Grandstream Door Phone features 2w audio output enough for up 3 meters distance. The Microphone can pick up voice from 1.5 Meters. The Exterior of this DoorPhonequipped with 12-key touchpad, capacitive doorbell button, each with LED BACKLIGHT illumination and a Camera. The Standard 125KHz: EM4100 cards are well suited to use with GDS3710. It has an RS485, Wiegand (26 bits) input and output interface for expansion purposes. The Grandstream GDS3710 Can configure with existing security devices with its support for alarm-out and alarm-in. Grandstream offers free management application called GDS Manager for managing single or several GDS Door Entry units in a network or remote location. The GDS Manager App helps you control video feeds, RFID card information, and entry logs. The GDS3710 is equipped with integrated 10/100 Network port with PoE Support for easy installation. However you can use optional 12V, 1 A AC/DC Adaptor for feed the power.
GDS3710 Video Access Control Specification
- SIP/ VoIP Support
- IP Video & Audio Door Phone
- RFID & Password Support
- RS485, Wiegand (26 bits) Input and Output
- Inbuilt Relay for Door Lock
- 2 Megapixel Progressive Scan CMOS, 1920H x 1080V Camera
- Video Compression: H.264 High Profile / Main Profile / Base Profile, Motion JPEG.
- Audio Codec: G.711µ/a-law, G.722, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), AEC.
- Wide Dynamic Range in Camera
- NVR Recording Support
- Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
- Built-in Digital Microphone, up to 1.5m with AEC.
- Built-in HD Loudspeaker (2 Watt)
- 10M/100M auto-sensing Ethernet Port
- PoE (Power over Ethernet) IEEE 802.3af Class 3
- Optional 12VDC/1A Adaptor
- Weatherproof, vandal resistant
- Operation: -30°C to 60°C (-22°F to 140°F)
